How Long Do Aluminum Electrolytic Capacitors Last? Temperature, Ripple Current and Endurance Explained
Learn how temperature, ripple current, ESR and cooling affect aluminum electrolytic capacitor life—and what data is needed for a realistic service-life estimate.
“How long will this aluminum electrolytic capacitor last?” sounds like a simple question. In practice, the endurance value printed in a datasheet is only the starting point.
Actual service life depends on the capacitor’s internal temperature, ripple-current load, ESR, cooling, voltage stress and operating profile. Two capacitors with the same rated voltage and capacitance can therefore perform very differently in the same UPS, inverter, industrial drive or energy-storage system.
Endurance rating is not the same as field service life
An endurance rating—such as 2,000 hours at 105°C—is a standardized test condition for a specific series. It does not mean the capacitor will fail exactly after 2,000 hours, and it does not automatically predict how long the part will operate inside real equipment.
The rating must always be read together with the test temperature, applied voltage, permitted ripple current and the electrical limits stated after the test. A lower actual operating temperature can extend expected life substantially, while excessive internal heating can shorten it even when the applied DC voltage remains within the rated limit.
Temperature is usually the dominant life factor
Liquid-electrolyte aluminum capacitors age as electrolyte is gradually lost through the sealing system. As aging progresses, capacitance may decrease and ESR may rise. Higher temperature accelerates this process.
The temperature that matters is not only the room temperature. Engineers should consider:
• ambient temperature around the capacitor;
• heat transferred from nearby semiconductors, transformers and heat sinks;
• self-heating caused by ripple current and ESR;
• airflow, enclosure temperature and mounting position;
• the capacitor’s can temperature and estimated internal hotspot.
A cabinet measured at 40°C can still contain a capacitor operating much hotter because of poor ventilation or nearby heat sources.

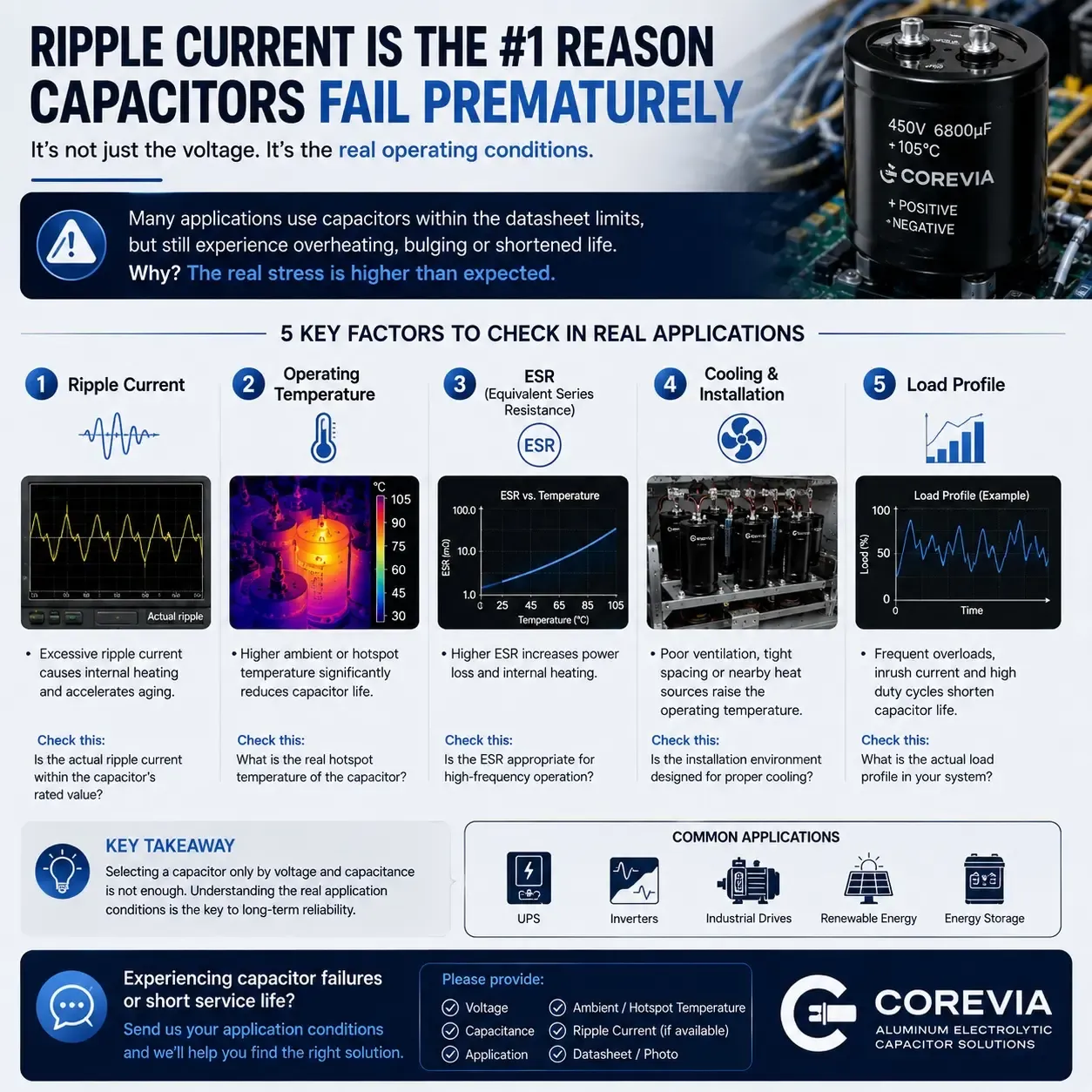

Ripple current creates internal heat
Ripple current flowing through the capacitor’s ESR produces power loss and raises internal temperature. This is why a replacement selected only by voltage and capacitance may run hotter than the original part.
The comparison should use ripple-current capability at the relevant frequency and temperature. A value quoted at 100 or 120 Hz cannot always be applied directly to a high-frequency switching waveform. Harmonic content and the manufacturer’s frequency correction factors must also be considered.
For a deeper explanation, see Why Aluminum Electrolytic Capacitors Fail Early: Ripple Current, ESR and Heat [https://www.coreviacap.com/posts/how-ripple-current-and-esr-affect-capacitor-reliability].
What does the “10°C rule” mean?
For many conventional liquid-electrolyte aluminum capacitors, a common engineering approximation is that expected life roughly doubles for each 10°C reduction in operating temperature. Panasonic describes this as the “10°C 2-fold law.”
As a simplified illustration, a series rated for 2,000 hours at 105°C could suggest an estimated life of roughly 32,000 hours at 65°C—four 10°C steps lower—if the other stress conditions remain comparable.
This is an estimate, not a warranty. The simple rule must not replace the exact series-specific calculation. Ripple-current heating, voltage, maximum allowable life, sealing construction and the manufacturer’s published life model can all change the result.
Cooling and installation can change the result
Capacitor life is influenced by the equipment around it. Tight spacing, blocked airflow, a horizontal installation near a heat source or a sealed enclosure can increase operating temperature. In capacitor banks, the center components may run hotter than those at the edge.
Useful checks include:
• measuring temperature after the system reaches thermal equilibrium;
• checking the hottest operating mode, not only nominal load;
• verifying airflow paths and fan performance;
• keeping adequate distance from heat-generating components;
• reviewing vibration, mounting torque and terminal connections for large capacitors.
Voltage margin does not cancel thermal stress
Operating below rated voltage can provide useful design margin, but it cannot compensate for excessive ripple current or high temperature. Designers should also check startup overshoot, regenerative events, line variations and repetitive transients.
For series-connected capacitor banks, voltage sharing must be reviewed. Unequal leakage current or an unsuitable balancing network can place more voltage on one capacitor even when the total DC-bus voltage appears acceptable.
Duty cycle and real load profile matter
A system that operates continuously at high load creates a different thermal history from equipment with short operating cycles and long cooling periods. UPS overload events, inverter acceleration cycles, renewable-energy power fluctuations and industrial drive duty cycles can all affect capacitor stress.
A realistic life review should use the actual operating profile rather than a single nameplate condition.
How to make a practical capacitor life estimate
A reliable review normally follows these steps:
• Identify the exact capacitor series and datasheet. Do not calculate from a generic 105°C rating alone.
• Confirm rated voltage, capacitance, case size and terminal construction.
• Measure or estimate the capacitor’s local ambient and can temperature.
• Determine RMS ripple current and its frequency distribution.
• Apply the correct frequency and temperature correction factors.
• Include nearby heat sources, airflow and real duty cycle.
• Use the manufacturer’s series-specific life curves or calculation method.
• Validate the result with thermal testing under worst-case operating conditions.
TDK’s AlCap tool, for example, calculates useful life for selected large-size capacitor types using application-specific load conditions. This illustrates why reliable estimation requires more than a single temperature number.
Common signs of excessive capacitor stress
• higher-than-expected can temperature;
• progressive ESR increase;
• capacitance loss;
• increased DC-bus ripple or unstable power-stage behavior;
• electrolyte leakage, vent deformation or bulging;
• repeated early failure in the same installation position.
Bulging or leakage should be treated as a serious failure indication, not as a normal maintenance threshold.
Information needed before selecting a replacement
For an accurate cross-reference or life review, provide:
• original manufacturer and part number;
• rated voltage and capacitance;
• ripple-current requirement and frequency;
• ESR or impedance requirement;
• ambient and measured can temperature;
• required endurance or service-life target;
• case dimensions, mounting and terminal details;
• application, load profile and expected annual operating hours;
• photos or the original datasheet.
If the application uses a high-voltage DC link, you may also find these guides useful: 450V Aluminum Electrolytic Capacitor Selection Guide [https://www.coreviacap.com/posts/450v-aluminum-electrolytic-capacitor-selection-guide] and How to Select DC-Link Capacitors for UPS and Inverter Applications [https://www.coreviacap.com/posts/dc-link-capacitor-selection-for-ups-and-inverters].
